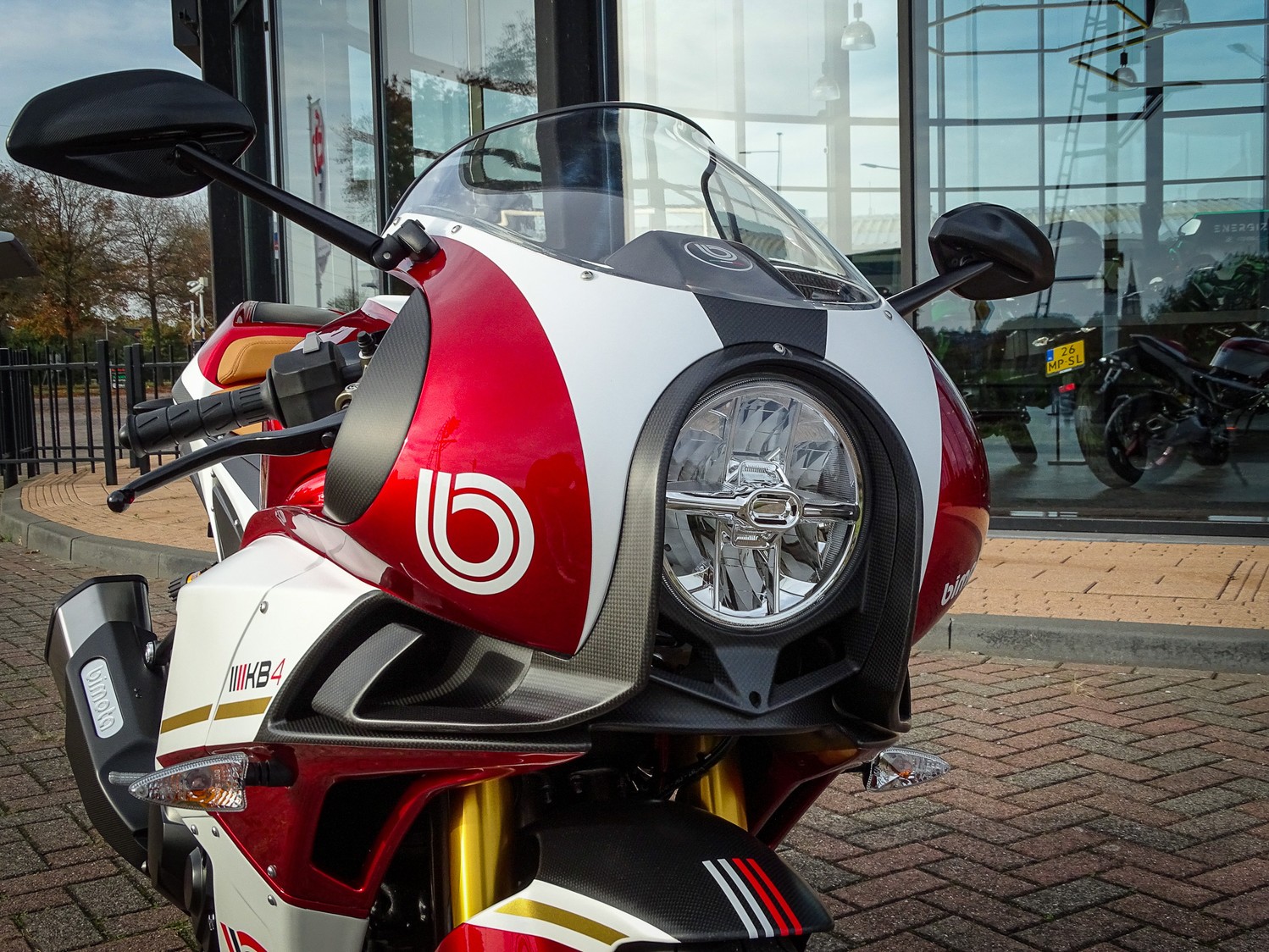

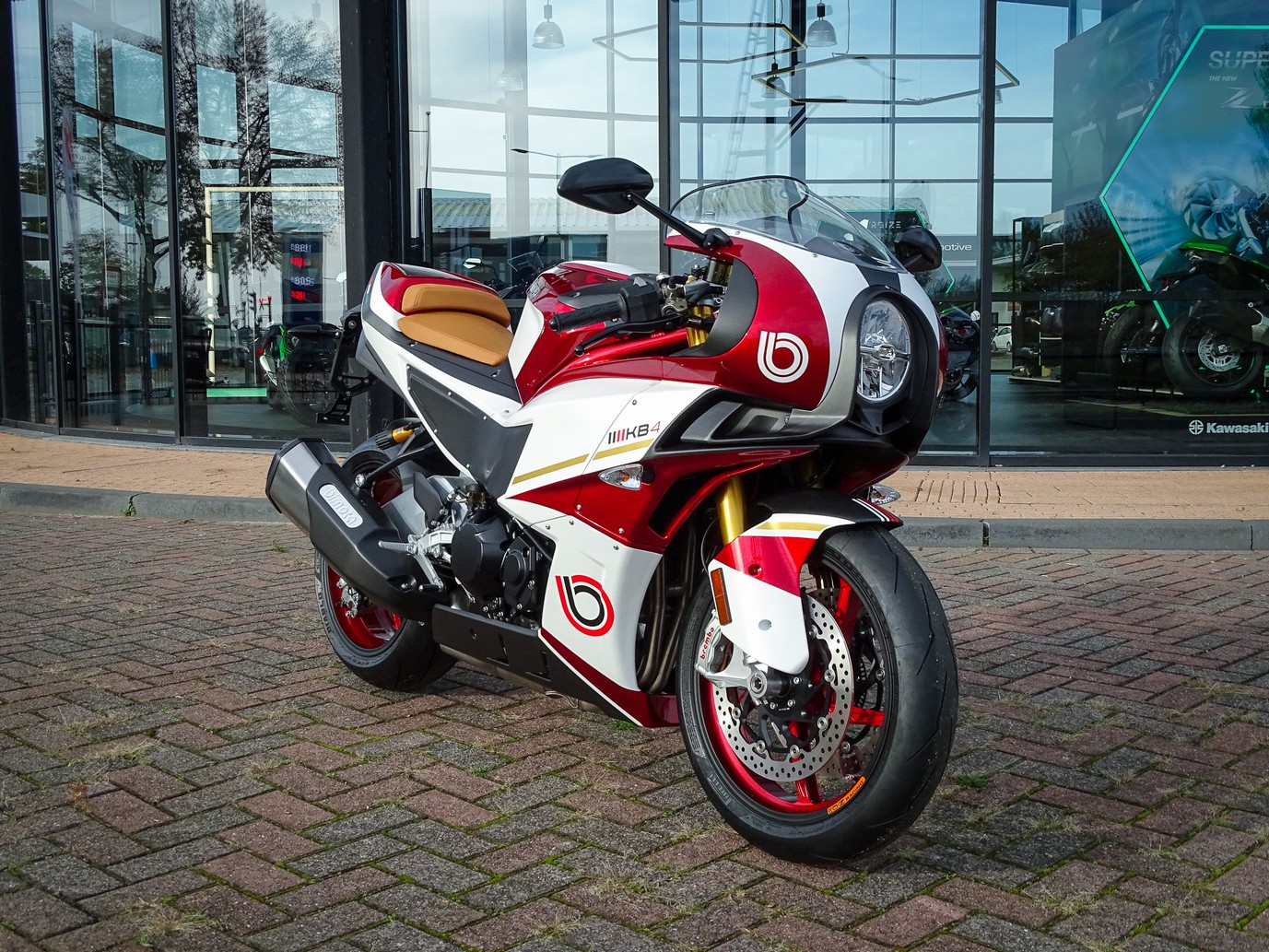

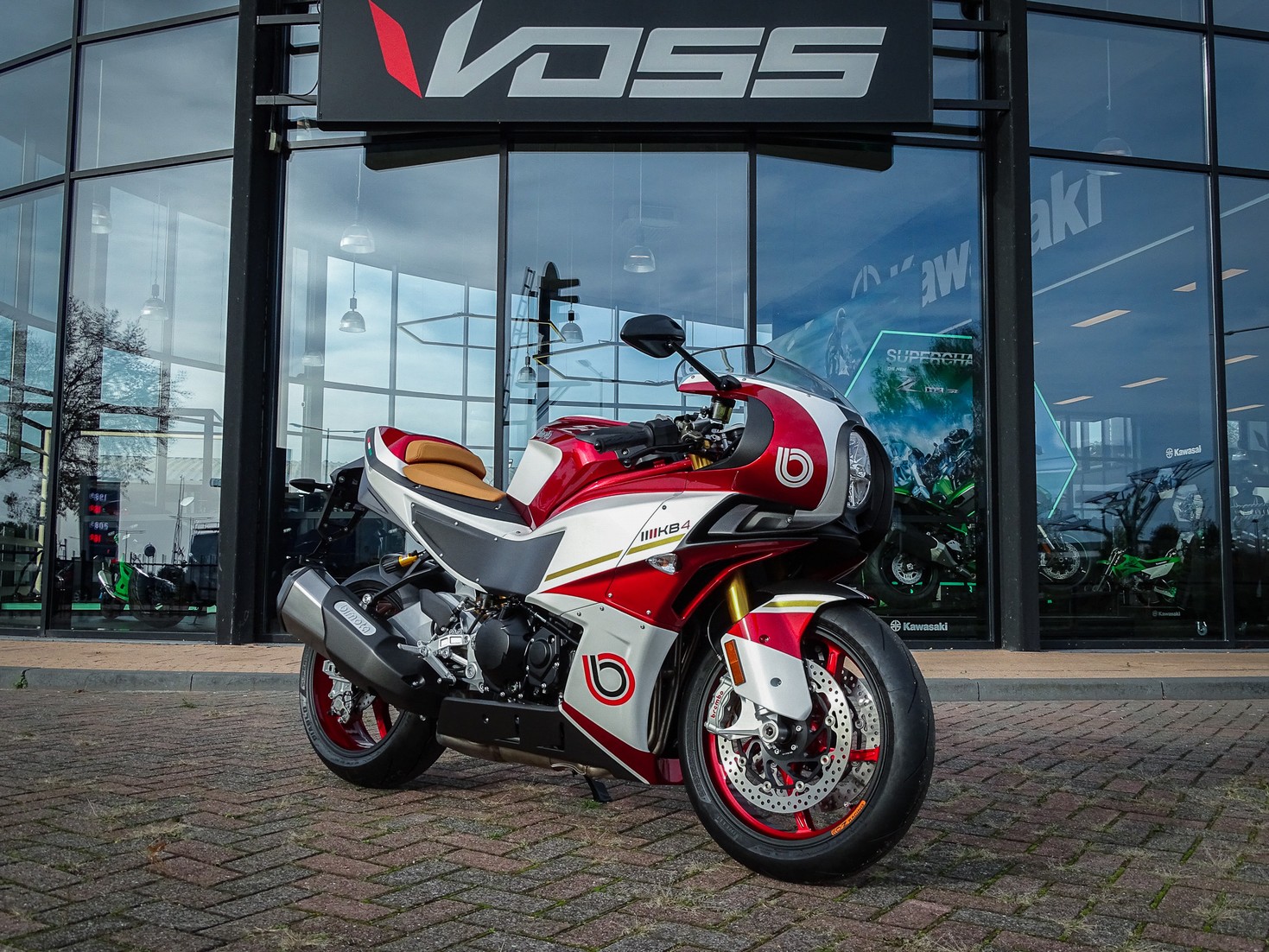

BimotaKB 4

Vos Oss Motoren is officieel de enige Bimota dealer in Nederland.

Model name: KB4
Frame type: Front frame trellis made by Hi-resistance steel with Aluminum alloy plates billet machined

Engine type / Valve system: 4 stroke, 4 cyl, DOHC, W/C, 4 valve
Displacement: 1.043 cm³
Bore x Stroke: 77 mm x 56 mm
Compression ratio: 11,8 : 1
Max. power: 104,5 kW (142HP) / 10,000 rpm
Max. torque: 111N·m (11.3 kgf·m) / 8,000 rpm
Fuel system 38 mm throttle bodies(4), Euro 5
Fuel capacity: 19.5 lt.
Transmission: 6 speed
Gear Ratio: 1st 2.600(39/15); 2st 1.950(39/20); 3st 1.600(24/15); 4st 1.389(25/18); 5st 1.238(26/21); 6st 1.107(31/28)
Primary reduction ratio: 1.627 (83/51)
Final reduction ratio: 2.733(41/15)
Clutch type: Wet, multi-disc
Lubrication system: Forced Lubrication (wet sump)
Engine oil capacity: 4.0 lt.
Overall length: 2.050 mm
Overall width: 774 mm
Overall height: 1.150 mm
Wheelbase: 1.390 mm
Ground clearance: 140 mm
Seat height: 810 mm (+/- 8 mm)
Rake angle / Trail: 24.0°/ 100,8 mm
Front Suspension: Öhlins front fork FG R&T 43 NIX30
Wheel travel: 130 mm
Rear Suspension: Aluminum alloy Swingarm billet with Öhlins ttX 36
Rear wheel travel: 122 mm
Front tire size: 120 / 70Z R17
Front wheel size: Forged J17M/C×MT3.50
Rear tire size: 190/50ZR17
Rear wheel size: Forged J17M/C×MT6.00
Front dual: Disc 320 mm
Rear single: Disc 220 mm
Curb weight: 194 kg
Start of sales: 2022
